149.018 Tons of NM500 Wear Resistant Steel Plates Inspected for Thailand Order
Gnee has completed the quality documentation review for a 149.018-ton NM500 wear resistant steel plate order destined for Thailand. The order consists of 21 pieces of 35 mm thick NM500 steel plates in two widths, 2000 mm and 2200 mm, with a standard length of 12000 mm.

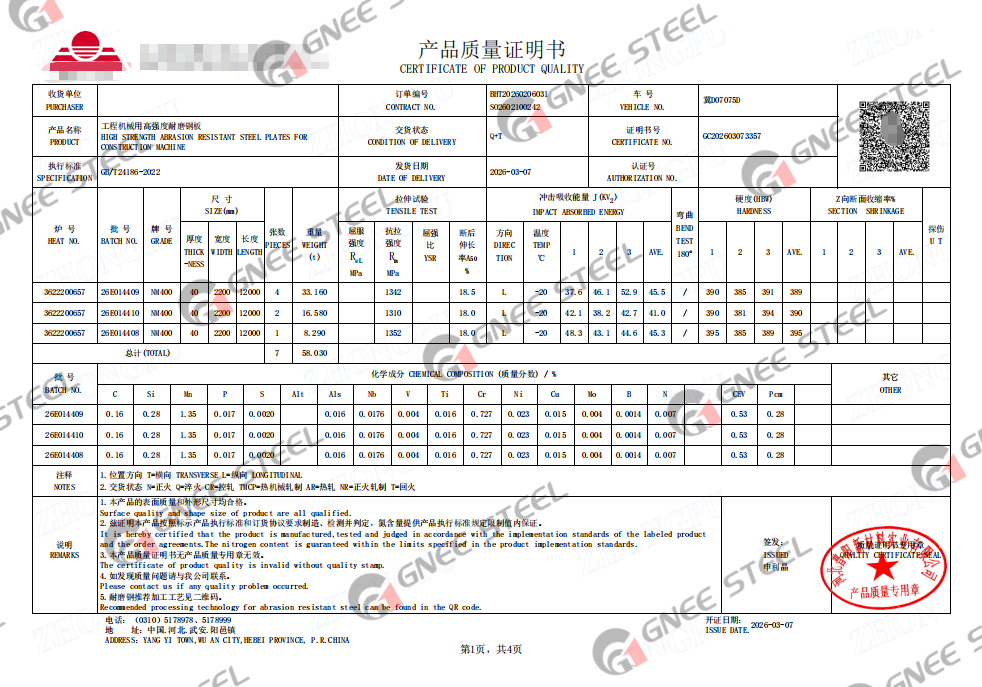

Manufactured in accordance with GB/T 24186-2022, these abrasion resistant steel plates were supplied in quenched and tempered (Q+T) condition. The manufacturer’s inspection certificate records Brinell hardness measurements, chemical composition results and dimensional quality confirmation.
The Thailand order required thick NM500 abrasion resistant steel plates with consistent specifications and documented hardness performance. The supplied material covers two plate sizes, allowing the customer to arrange subsequent cutting and component fabrication according to project drawings.
| Product Specification | Quantity | Weight |
|---|---|---|
| NM500, 35 × 2000 × 12000 mm | 5 PCS | 32.970 MT |
| NM500, 35 × 2200 × 12000 mm | 16 PCS | 116.048 MT |
| Total | 21 PCS | 149.018 MT |
Standard: GB/T 24186-2022 Delivery Condition: Quenched & Tempered (Q+T) Manufacturer: Hebei Puyang New Material Industry Co., Ltd. Certificate Date: January 29, 2026
Quality Inspection of NM500 Wear Resistant Steel Plates
Brinell hardness testing was recorded for all five production batches. The results show average hardness values between 484 and 508 HBW, providing measurable material performance data for the Thai customer.
| Batch No. | HBW 1 | HBW 2 | HBW 3 | Average HBW |
|---|---|---|---|---|
| 25E107310 | 493 | 498 | 493 | 495 |
| 25E107312 | 486 | 489 | 484 | 486 |
| 25E107311 | 508 | 505 | 510 | 508 |
| 25E107313 | 490 | 479 | 485 | 484 |
| 25E107235 | 488 | 486 | 490 | 488 |
The individual hardness readings range from 479 to 510 HBW. These measurements provide batch-specific quality records for the supplied 35 mm NM500 abrasion resistant steel plates.
Chemical Composition Test of NM500 Steel Plates
Chemical composition analysis was also recorded for the five NM500 steel plate batches. Carbon, manganese and chromium are among the elements relevant to hardenability and the mechanical properties obtained after quenching and tempering.
| Batch No. | C (%) | Si (%) | Mn (%) | Cr (%) | P (%) | S (%) |
|---|---|---|---|---|---|---|
| 25E107310 | 0.28 | 0.52 | 1.04 | 0.595 | 0.010 | 0.0010 |
| 25E107312 | 0.29 | 0.50 | 1.04 | 0.598 | 0.012 | 0.0010 |
| 25E107311 | 0.29 | 0.50 | 1.04 | 0.598 | 0.012 | 0.0010 |
| 25E107313 | 0.29 | 0.50 | 1.04 | 0.598 | 0.012 | 0.0010 |
| 25E107235 | 0.28 | 0.58 | 1.08 | 0.594 | 0.012 | 0.0010 |

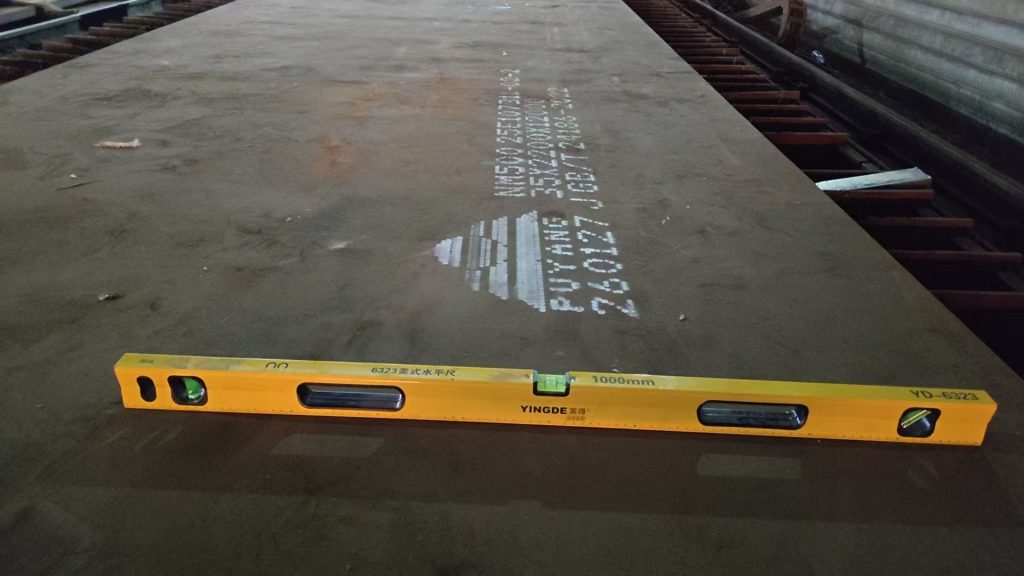

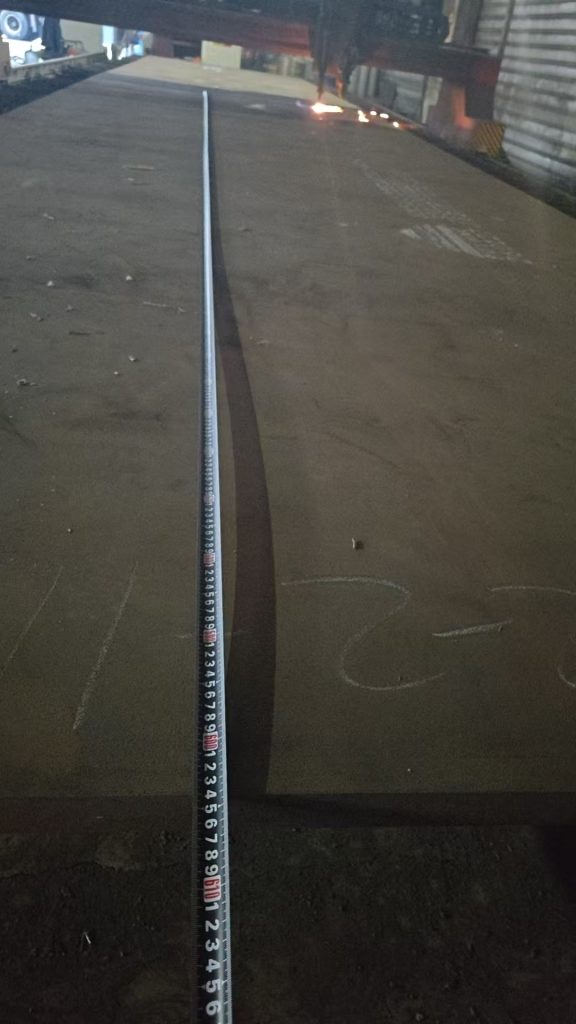

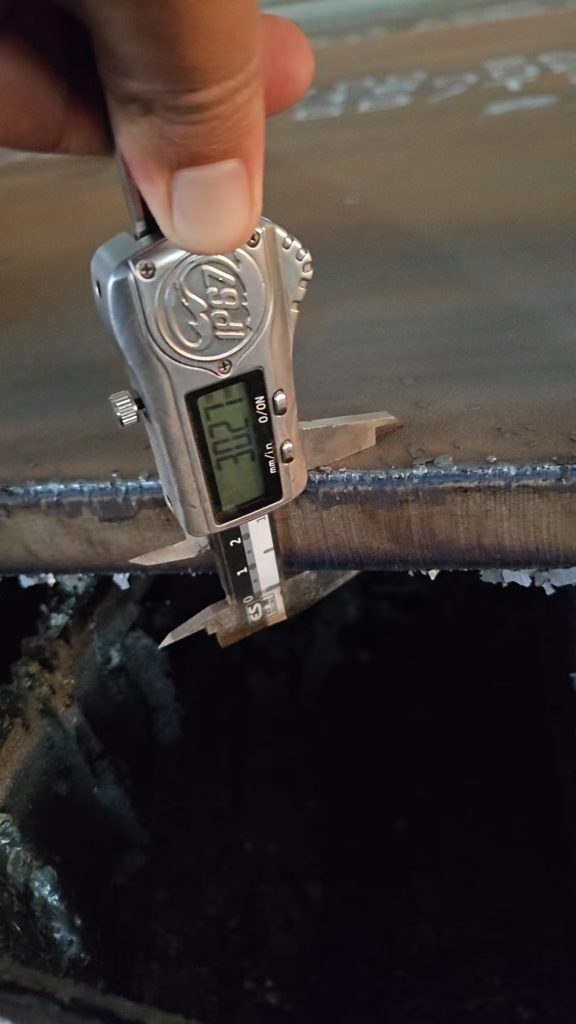

In addition to hardness and chemical composition testing, the manufacturer’s quality certificate confirms that the surface quality and dimensions of the NM500 steel plates were acceptable.

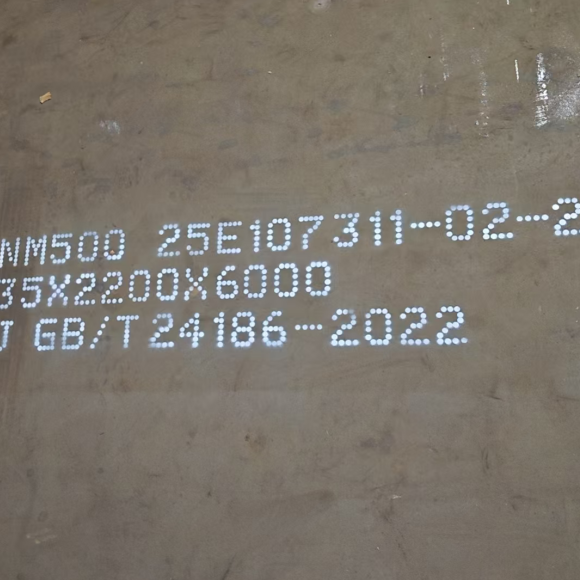

Each batch is identified by its corresponding heat number and batch number. This documentation connects the supplied plate dimensions, quantities, weights and test results, supporting material verification during customer acceptance.
The 35 mm NM500 wear resistant steel plates were supplied in Q+T condition, which is used to obtain the required hardness through controlled heat treatment.
NM500 Steel Plate Processing and Export Supply
For heavy-duty machinery manufacturers, purchasing thick NM500 abrasion resistant steel plates often involves additional fabrication requirements, including CNC cutting, component sizing, bevel preparation and welding.
Gnee can coordinate NM500 steel plate sourcing and processing according to customer drawings, material specifications and quantity requirements. For bulk orders, material traceability and inspection documentation can be incorporated into the purchasing and delivery arrangements.
The Thailand project demonstrates Gnee’s ability to coordinate a large-volume order involving 21 pieces of 35 mm NM500 wear resistant steel plates, with a documented total weight of 149.018 metric tons.
Contact Gnee for NM500 Wear Resistant Steel Plate Orders
Gnee supplies NM500 abrasion resistant steel plates in standard and project-specific dimensions, with cutting and fabrication support available according to customer requirements.
Whether you need 35 mm NM500 steel plates or other thicknesses for large-volume orders, contact us with your required grade, dimensions, quantity, drawings and destination port. Our team can assist with technical specifications, quality documentation and FOB/CIF quotations.
