How to choose the NM400 and NM500 abrasion resistant plate

NM500 abrasion resistant plate is the industry-leading solution for environments where extreme wear, high friction, and heavy impact are daily challenges.

In industries such as mining, cement production, and heavy construction, selecting the wrong grade of steel leads to more than just worn-out parts—it leads to catastrophic downtime and lost revenue.

While NM400 is a standard choice for many, the NM500 abrasion resistant plate represents a significant upgrade in durability, offering a strategic advantage for companies looking to extend their equipment’s lifecycle and minimize maintenance costs.

Chemical Composition of NM500 vs. NM400

The primary differentiator in the “NM” series is the Brinell hardness. The numerical value represents the surface hardness (HBW).

• Hardness Specifications of NM500: The NM500 abrasion resistant plate is engineered to reach a nominal hardness of 500 HBW. This is achieved through a rigorous quenching and tempering process, combined with a specific chemical composition rich in Chromium, Nickel, and Manganese.

• Hardness Specifications of NM400: NM400 offers a nominal hardness of 400 HBW.

While a 100 HBW difference might seem minor, it represents a 25% increase in surface hardness.

In the world of abrasion, this 25% increase in hardness can result in a 50% to 100% increase in the service life of a liner or bucket, depending on the abrasive media (sand, rock, or scrap metal).

Our NM500 abrasion resistant plate is through-hardened, meaning the protection isn’t just on the surface—it lasts until the plate is worn thin.

When calculating the “Total Cost of Ownership,” the NM500 abrasion resistant plate consistently outperforms lower grades.

• Lower Maintenance Frequency with NM500: Because NM500 resists sliding wear more effectively, the intervals between machine shutdowns are significantly longer. For a mining operation, this means the crusher or chute stays operational for months longer than it would with NM400.

• The Economy of NM400: NM400 is often chosen for its lower initial purchase price. It is an excellent “utility” plate for areas with moderate wear.

• The Strategic Investment of NM500: However, savvy project managers look at the “cost per ton of material moved.” By using NM500 abrasion resistant plate, you reduce the labor costs associated with welding, the rental costs of cranes for part replacement, and the opportunity cost of idle machinery. In most high-volume applications, NM500 pays for itself within the first half of its service life.

A critical factor in choosing a grade is how easily it can be integrated into your existing equipment.

• Machining and Cutting NM500 and NM400: Both plates can be cut using laser, waterjet, or plasma systems. However, the NM500 abrasion resistant plate requires more precise heat management. To prevent the loss of hardness at the cutting edge (the heat-affected zone), slower speeds and specific cooling protocols are recommended.

• Welding Challenges for NM500: Due to its higher alloy content, NM500 is more sensitive to hydrogen cracking. We recommend using low-hydrogen electrodes and a preheating temperature of 150°C to 200°C. NM400 is generally more “forgiving” and requires less preheating for thinner sections.

• Bending and Forming NM500 vs. NM400: NM400 is easier to cold-form. If your design requires tight bends, NM400 is the simpler choice. The NM500 abrasion resistant plate, being much stiffer, requires a larger bending radius (at least 6 times the thickness) and significantly higher press brake tonnage.

One of the most modern applications for the NM500 abrasion resistant plate is in the transportation sector, specifically for dump truck bodies and trailers.

• Thin-Plate Strength of NM500: Because NM500 is stronger and more wear-resistant, you can achieve the same protection with a thinner plate. For example, a 6mm NM500 abrasion resistant plate can often replace an 8mm NM400 plate.

• The Resulting Benefits: By reducing the weight of the truck body, you increase the legal payload capacity. Over thousands of trips, a truck lined with NM500 will carry more material and consume less fuel than a heavier truck lined with NM400, directly boosting the profitability of the logistics fleet.

Application-Specific Selection: NM500 vs. NM400

The “right” choice depends entirely on your operating environment.

• Choose NM400 when: You are dealing with moderate abrasion and low impact, such as in secondary screening, grain handling, or standard construction buckets. It is the go-to for general-purpose wear protection.

• Choose NM500 when: You are facing extreme conditions. This includes primary stone crushers, concrete mixers, shredder parts, and heavy-duty mining chutes. If the material being moved is sharp, heavy, and fast-moving, the NM500 abrasion resistant plate is the only logical choice to prevent rapid erosion.

Why Our NM500 Abrasion Resistant Plate is the Industry Benchmark

We don’t just sell steel; we provide wear solutions. Our NM500 abrasion resistant plate undergoes a secondary refining process to ensure ultra-low impurity levels, resulting in a plate that is not only hard but also remarkably tough and crack-resistant.

1. Through-Thickness Hardness: We guarantee that our NM500 maintains its HBW rating from the top surface to the very center.

2. Superior Flatness: Our advanced leveling technology ensures that your laser-cutting table won’t encounter height variations, saving you time and nozzles.

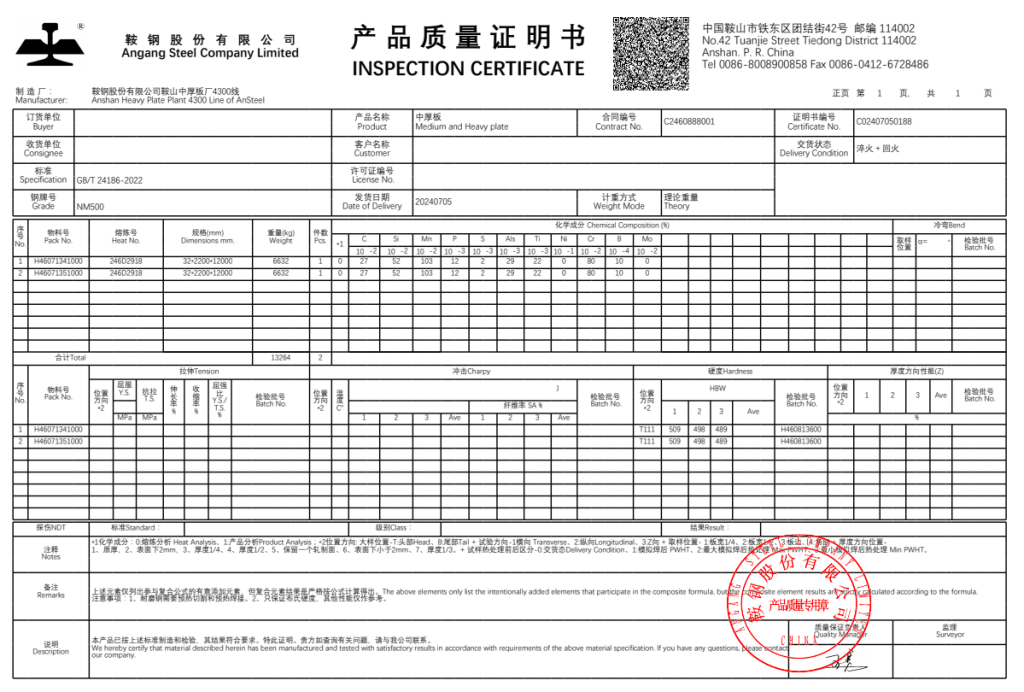

3. Certified Traceability: Every plate is delivered with a comprehensive Mill Test Certificate (MTC) and can be third-party inspected (SGS/BV) upon request.

While NM400 serves a vital purpose in the market, the NM500 abrasion resistant plate is the superior choice for those who view maintenance as an avoidable expense rather than a cost of doing business. By choosing NM500, you are choosing more uptime, higher payloads, and a stronger bottom line.

Don’t let wear and tear slow you down. Contact us today to secure the highest quality NM500 plates for your next project.
